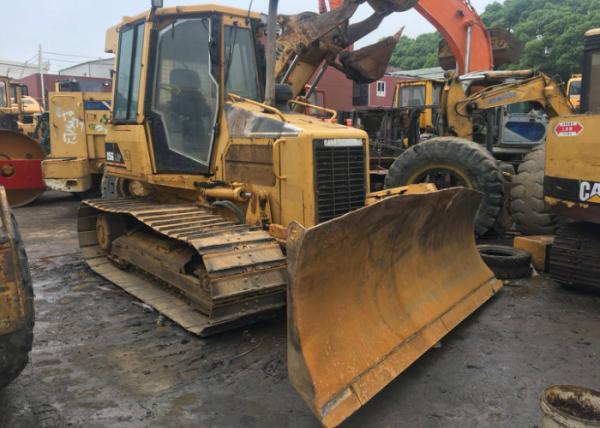

99hp Second Hand Bulldozers D5g Cat Used Crawler Bulldozer With Blade

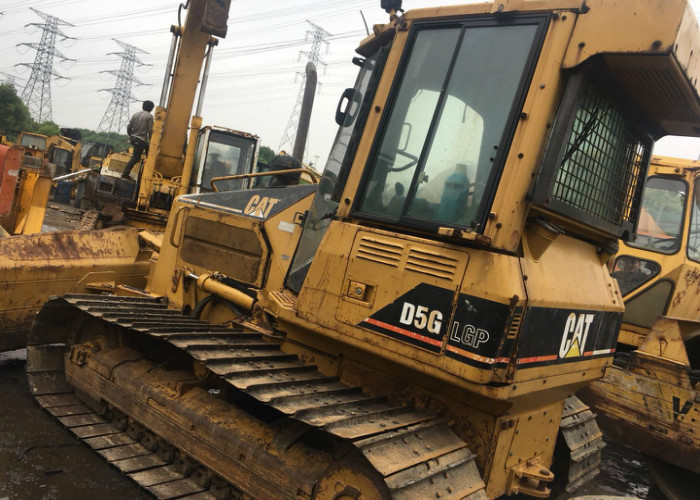

Used Caterpillar bulldozer CAT D5G LGP

Make:Caterpillar

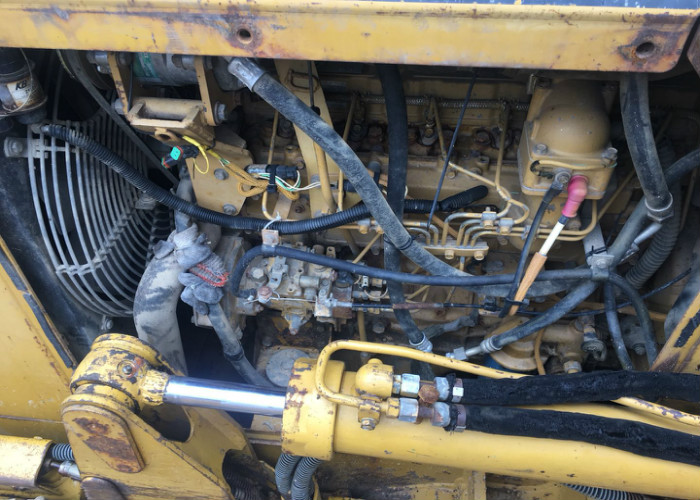

Engine Model:CAT 3046T

Engine Power:99hp

Power Measured @2200 rpm

Displacement 305 cu in

Operational Operating Weight 20434 lb

Fuel Capacity 48.6 gal

Cooling System Fluid Capacity 4.3 gal

Engine Oil Capacity 3.4 gal

Hydraulic Fluid Capacity 12 gal

Final Drives Fluid Capacity 5.7 gal

Operating Voltage 12 V

Alternator Supplied Amperage 120 amps

Transmission. Transmission Type Hydrostatic

Number of Forward Gears 1

Number of Reverse Gears. 1

Max Speed - Forward. 5.6 mph

Max Speed - Reverse. 6 mph

Undercarriage Ground Pressure. 4.4 psi

Ground Contact Area 4741 in2

Standard Shoe Size 26 in

Number of Shoes per Side 39

Number of Track Rollers per Side 7

Track Gauge 5.7 ft in

Hydraulic System Relief Valve Pressure 2900 psi

Pump Flow Capacity 16.1 gal/min

Standard Blade Width 10.7 ft in

Height 40.5 in Capacity 3.1 yd3

Blade Angle (both directions) 25 degrees

Cutting Depth 22.9 in

Dimensions
Length w/o Blade

10.5 ft in

Length w/ Blade

14 ft in

Width Over Tracks

7.9 ft in

Height to Top of Cab

9 ft in

Length of Track on Ground

7.6 ft in

Ground Clearance

1.3 ft in

Payment Term

T/T(30%+40%+30%)

30% deposit after you confirmed and received the PI

40% after we booked the shipping space

30% againest copy of B/L

Contact Info

Bruce Mobile/Whatsaap/Wechat +0086 1871777512

We also have CAT D3C D4C D5C D5K D5G D5H D6D D6H D6G D6R D5M bulldozers
